Qualcomm IPQ5018 64 bit 1.0GH dual core A53 architecture CPU+single core NPU chip
The newly designed intelligent MESH networking router based on WIFI6 protocol
The AX3000 has many advantages, such as high bandwidth, low latency, high efficiency, large coverage, rich user interfaces, etc
Point, an ideal intelligent MESH for most operators to realize broadband and comprehensive transformation of access network services
Networking wireless router.
Product characteristics:
Powerful Dual core ARM Cortex A53 at 1.0GHz CPU processor
Integrated wireless 2.4G+5G four antenna design, supporting IEEE802.11b/g/n, IEEE802.11ac,
IEEE802.11ax wireless access standard, dual frequency concurrent
2.4G 11ax 2X2+5G 11ax 2X2, with a maximum wireless transmission rate of 2976Mbps, can solve the problem of multiple
Users, large coverage, low latency complex user scenarios

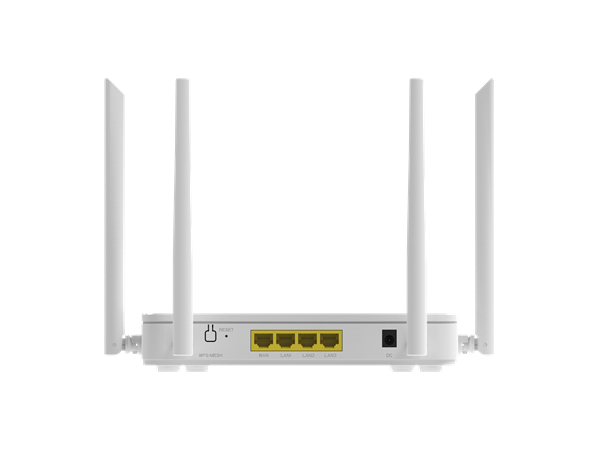

Design of 4-port Gigabit Ethernet
2.4GHz supports 11ax 40MHz bandwidth, 5GHz supports 11ax 160MHz bandwidth, which can be home
High performance broadband access multimedia video service provided by court users, shops, government and enterprise users
Support WiFi SON MESH routing protocol
Support Bluetooth BT5.1 (optional)
Functional features:
Based on OpenWrt (Linux kernel 4.4. x) system design, plug-ins can be flexibly installed
Support remote management, TELNET, HTTPS and other functions
Support local upgrade, import and export configuration files
WiFi supports 802.11ax (WiFi6) and 802.11ac (WiFi 5), b/g/n (WiFi4)
Support MESH networking function
Support TCP/IP, UDP, FTP, HTTP and other network protocols
The maximum speed of WIFI can reach 3000Mbps, supporting multi-user, large coverage and low delay scenarios
