Skinod Medical

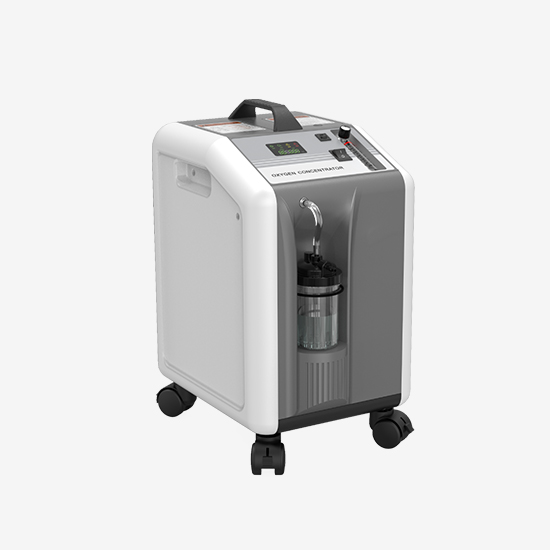

oxygen generator CP502

Medical oxygen generator is pure physical oxygen production, does not contain any chemical agent. Safe voltage, not to mention leakage, explosion. Convenient. It is easy to use and operate. The economy.
Get A Quote Play Video
  • oxygen generator CP502
  • oxygen generator CP502
  • oxygen generator CP502
  • oxygen generator CP502
  • oxygen generator CP502
  • oxygen generator CP502

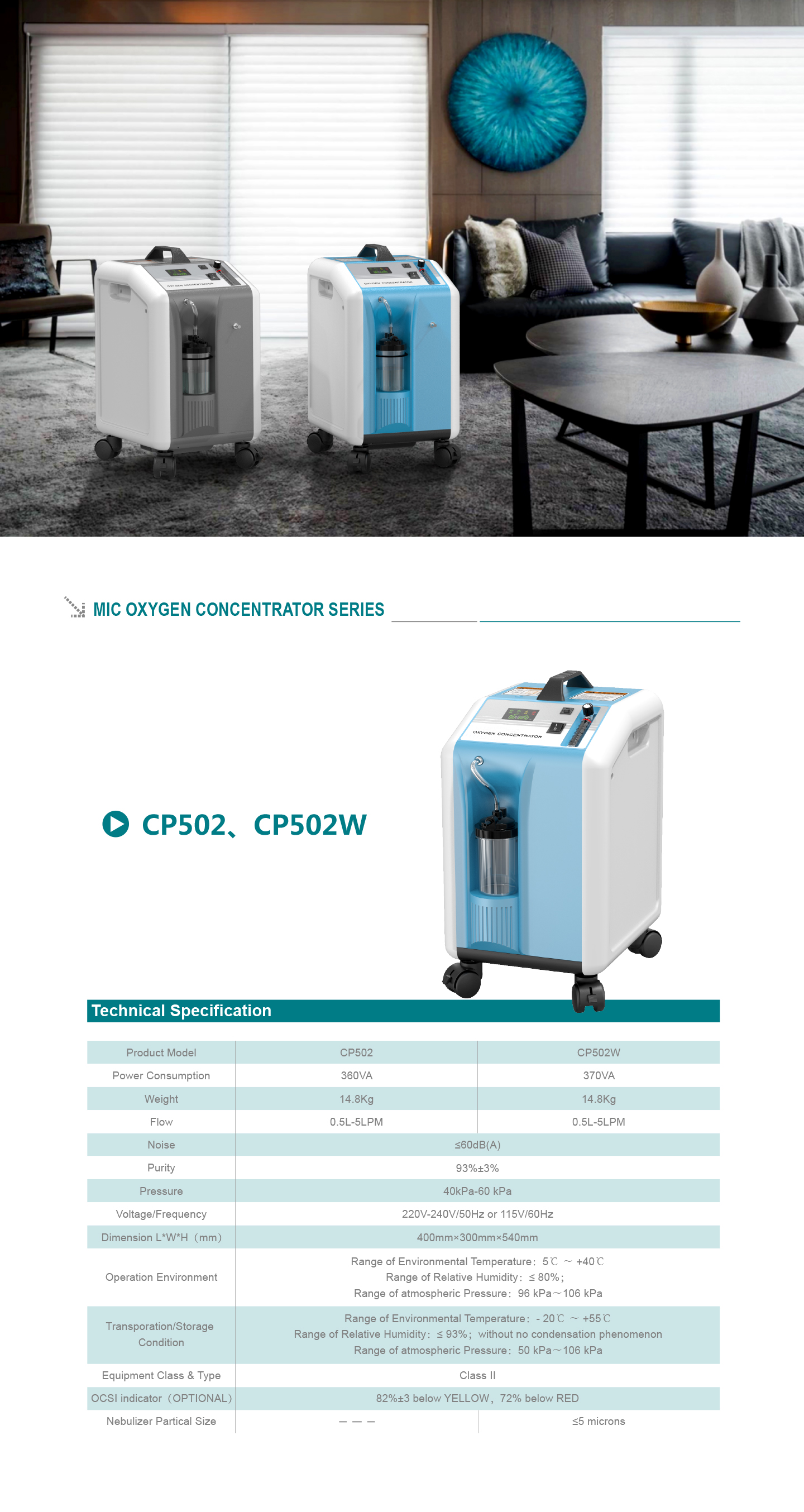

Technical Reference

Model No. CP502 Pressure 40kpa-60kpa
Flow 0.5-5Lmin Purity ≥93%±3%
weight 14.8kg Noise <43dB
Power consumption 300VA Dimension 380mm*250mm*588mm
voltage/Frequency 220V/50Hz±1Hz or 115Vl6OHz Equipment class&type
(Optional)
Class ll and TypeB
Operation Enwvironment:
Range of Environmental Temperature: 5°C~+40°C
Range of Relative Hurmidity : ≤ 80%;
Range of atmospheric Pressure: 96 kPa-106 kPa
TransporationirStorage Condition:
Range of Environmental Temperature: - 20 °C~+55°C
Range of Relatiwe Humidity: ≤93%; without no condensation phenomenon
Range of atmospheric Pressure: 50 kPa—106 kPa
oxygen generator
